Bidirectional unmixing example

This tutorial documents the interactive script user_scripts/unmix_bidirectional_example.py.

It covers the case in which bleed-through can occur in both directions between two channels, so a simple one-way subtraction is no longer sufficient.

How to use this tutorial

The script is designed for cell-based execution in an interactive Python environment.

The recommended workflow is:

  1. open user_scripts/unmix_bidirectional_example.py,

  2. run the cells from top to bottom,

  3. adapt the forward and reverse settings to your own dataset.

The subsections below follow the same order as the script.

Core idea

In bidirectional mode, our package models:

\[I_0 = S_0 + \alpha_{10} S_1\]
\[I_1 = S_1 + \alpha_{01} S_0\]

and solves the corresponding \(2 \times 2\) linear system jointly.

This is preferable to sequential subtraction, because sequential subtraction would depend on the order in which the two corrections are applied.

Imports

from __future__ import annotations

from pathlib import Path

PROJECT_ROOT = Path(__file__).resolve().parents[1]

from spectral_unmixing import (
    report_path_from_output_path,
    show_unmixed_channels_in_napari,
    unmix)

Define input and output paths

INPUT_PATH = (PROJECT_ROOT / "example_data" / "PICASSO_examples" / "bidirectional_example.tif")
OUTPUT_DIR = INPUT_PATH.parent / "unmixed"
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
# %% OPTIONAL: INSPECT PREPARED STACKS IN NAPARI
from spectral_unmixing.viewer import show_all_channels_in_napari
show_all_channels_in_napari(INPUT_PATH, layer_prefix="Bidirectional example")

As in the other examples, the main thing you would change here is INPUT_PATH. The script automatically writes results into an unmixed subfolder next to the input file.

Bidirectional unmixing with fixed coefficients

OUTPUT_FIXED = OUTPUT_DIR / "bidirectional_unmixed_fixed_alpha.tif"

fixed_output = unmix(
    input_path=INPUT_PATH,
    output_path=OUTPUT_FIXED,
    bidirectional=True,
    # source_channel=0,  # default: 0
    # target_channel=1,  # default: 1
    alpha=0.60,
    alpha_reverse=0.50,
    #alpha_mode="fixed",
    method="manual",
    # clip_negative=True,  # default: True
    # output_dtype="float32",  # default: "float32"
)
print(fixed_output)
print(report_path_from_output_path(fixed_output).read_text(encoding="utf-8"))
show_unmixed_channels_in_napari(
    fixed_output,
    source_channel=0,
    target_channel=1,
    layer_prefix="Bidirectional fixed",
    source_colormap="green",
    target_colormap="magenta")

This is the bidirectional analogue of the standard fixed-alpha workflow.

The main parameters are:

  • bidirectional=True: activates the two-direction model instead of the simpler one-way source-to-target subtraction.

  • alpha: forward-direction bleed-through coefficient. Larger values remove more of the forward contamination.

  • alpha_reverse: reverse-direction coefficient. Larger values remove more contamination in the reverse direction.

  • optional source_channel and target_channel: define the forward direction; the reverse direction is inferred from that pairing.

This is the scientifically strongest option when both directional coefficients come from proper single-label controls.

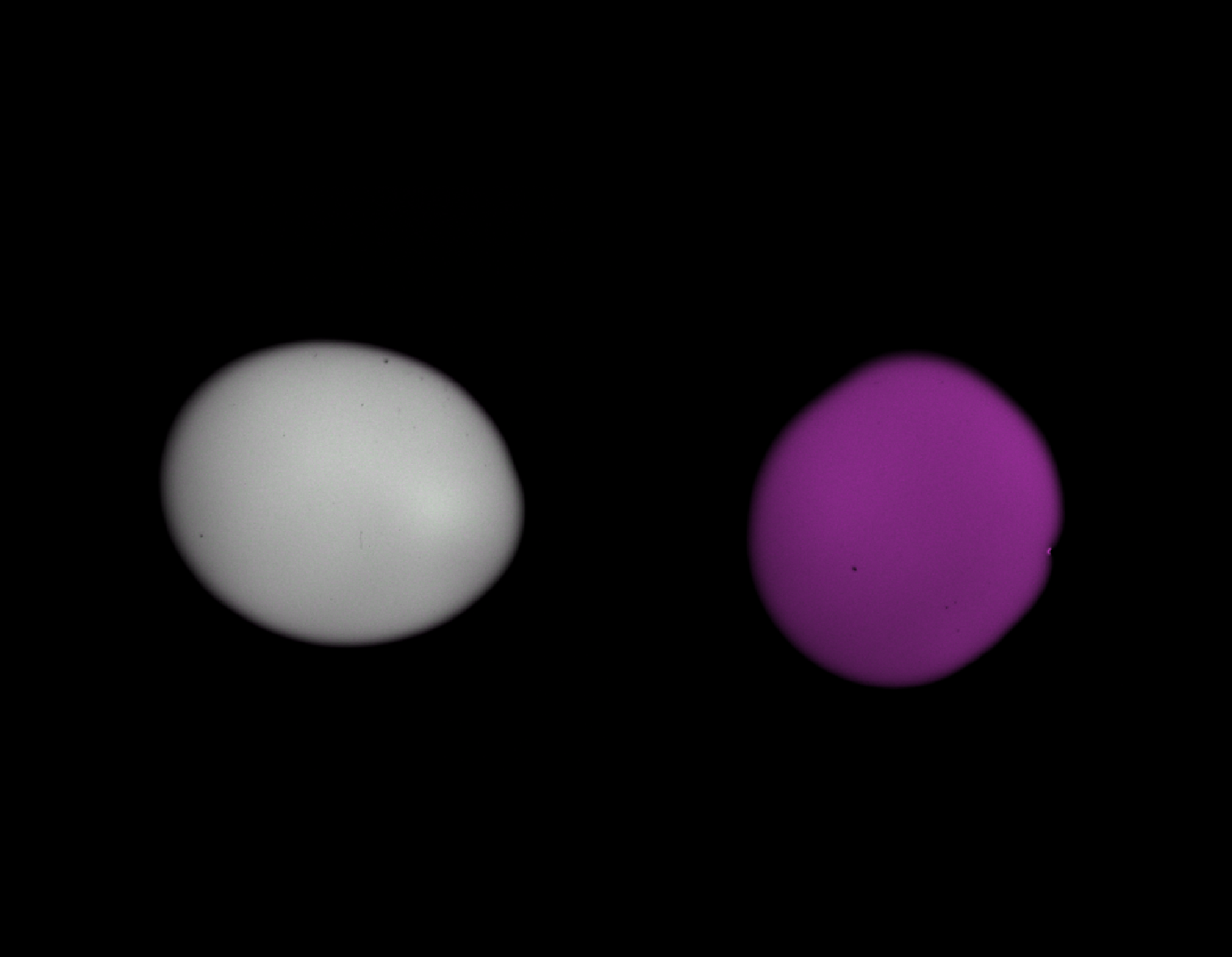

Composite image of the raw synthetic two-channel stack in Napari.

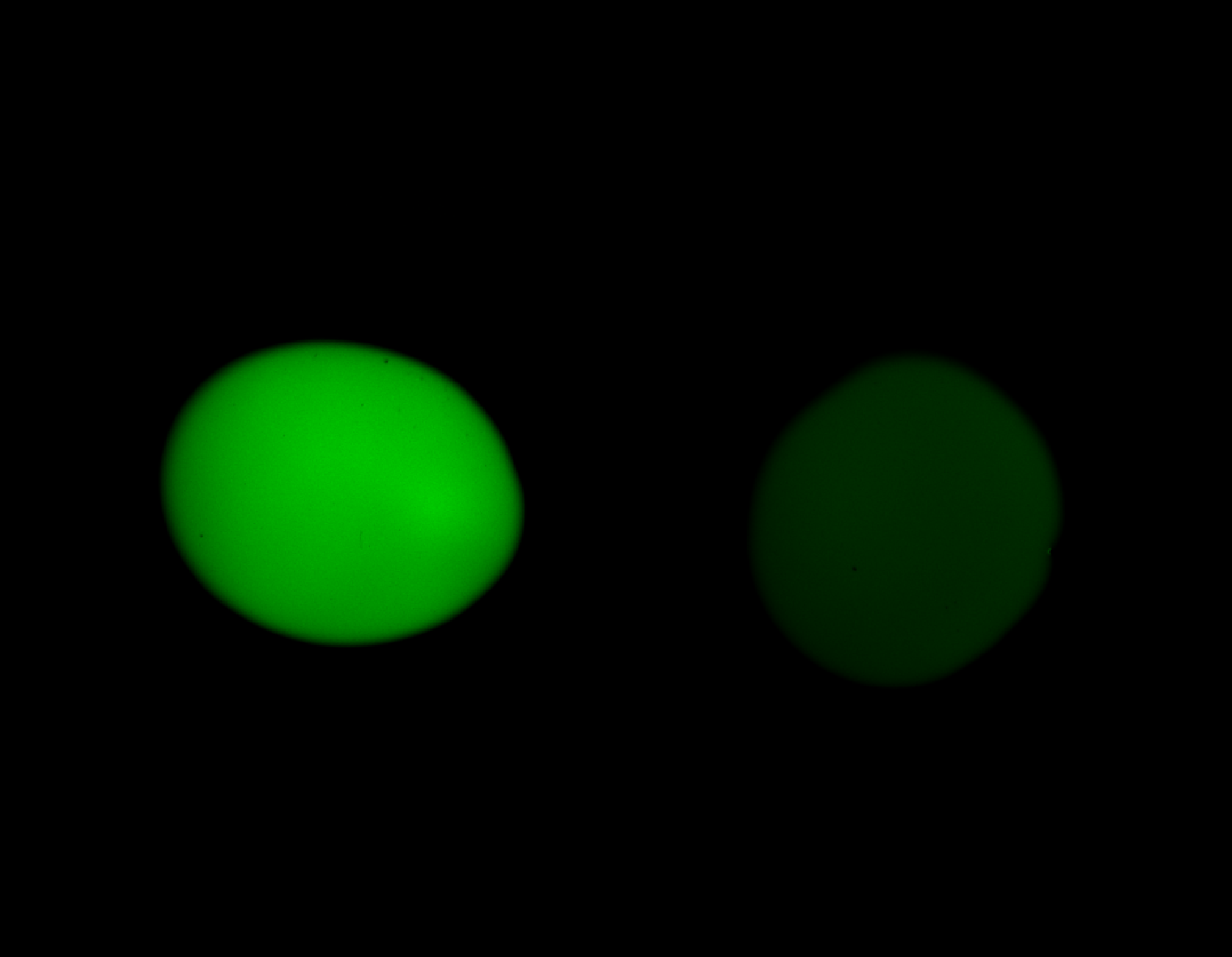

Channel 0 of the raw synthetic two-channel stack in Napari.

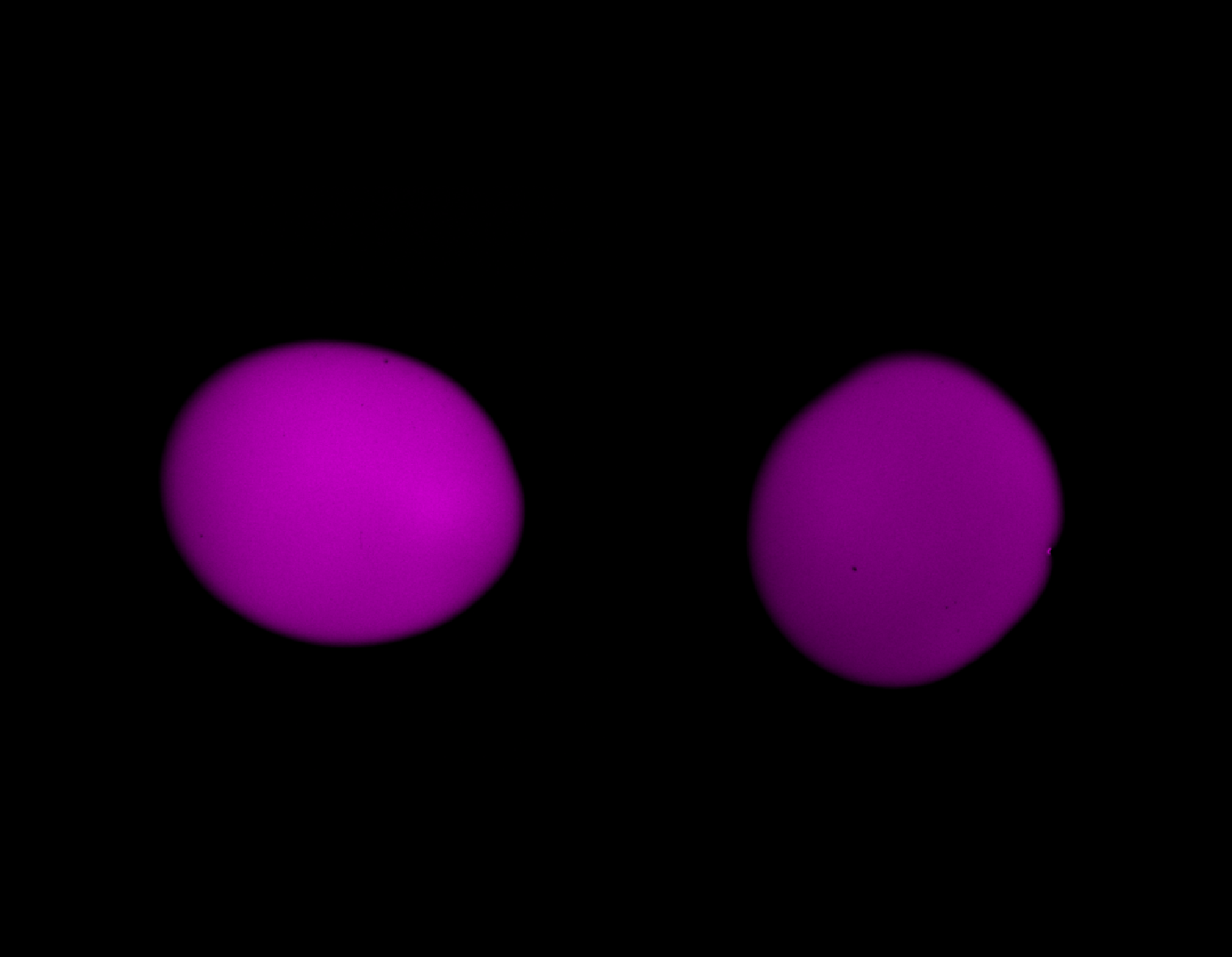

Channel 1 of the raw synthetic two-channel stack in Napari.

Unlike in the previous one-way unmixing example, here both channels contain bleed-through from the other channel. Top shows the composite view of the raw synthetic stack; center and bottom show the individual channels. spectral_unmixing offers a bidirectional workflow to correct both channels simultaneously. The forward and reverse coefficients can be set manually or estimated from single-label controls.

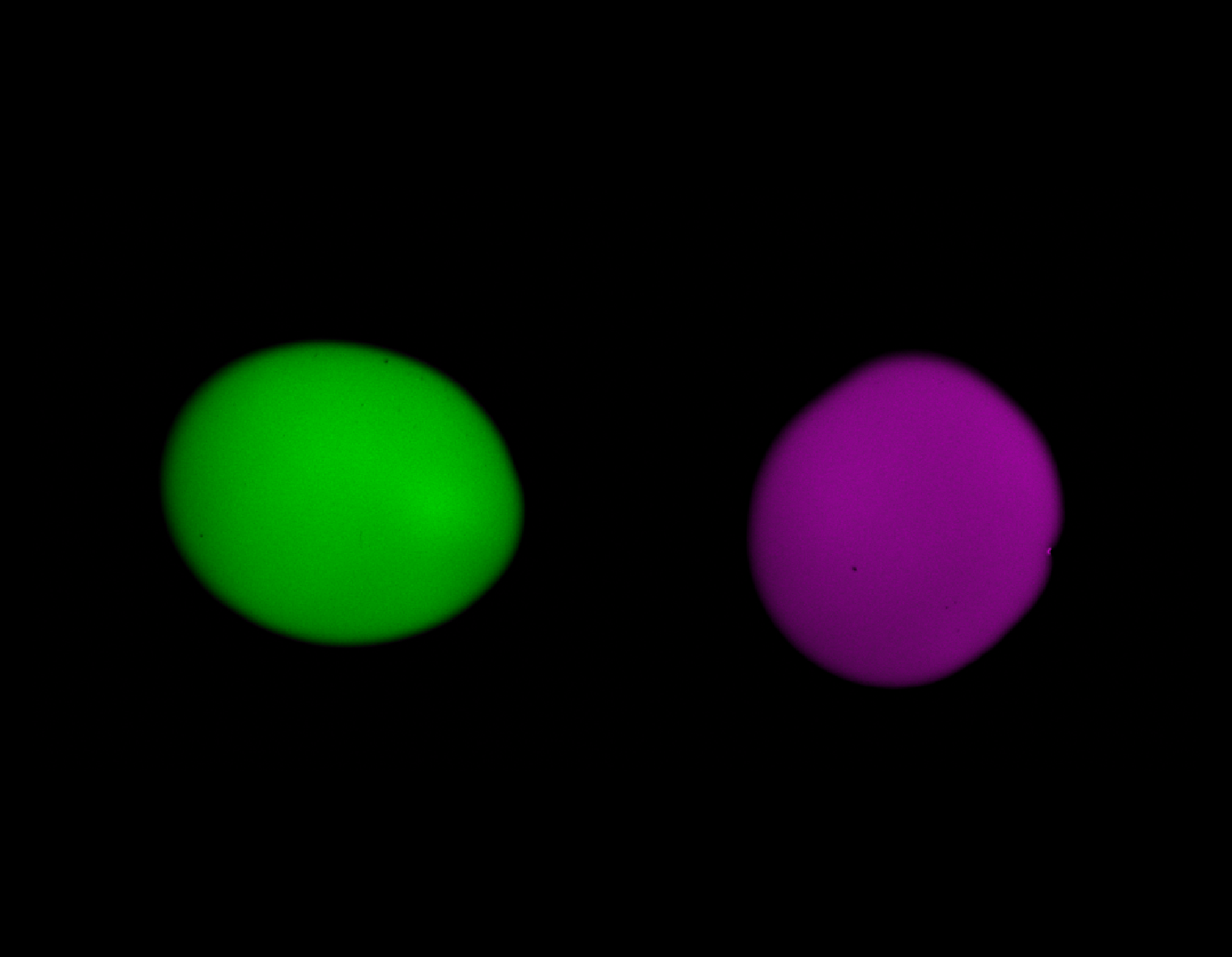

Composite image of the unmixed synthetic two-channel stack in Napari.

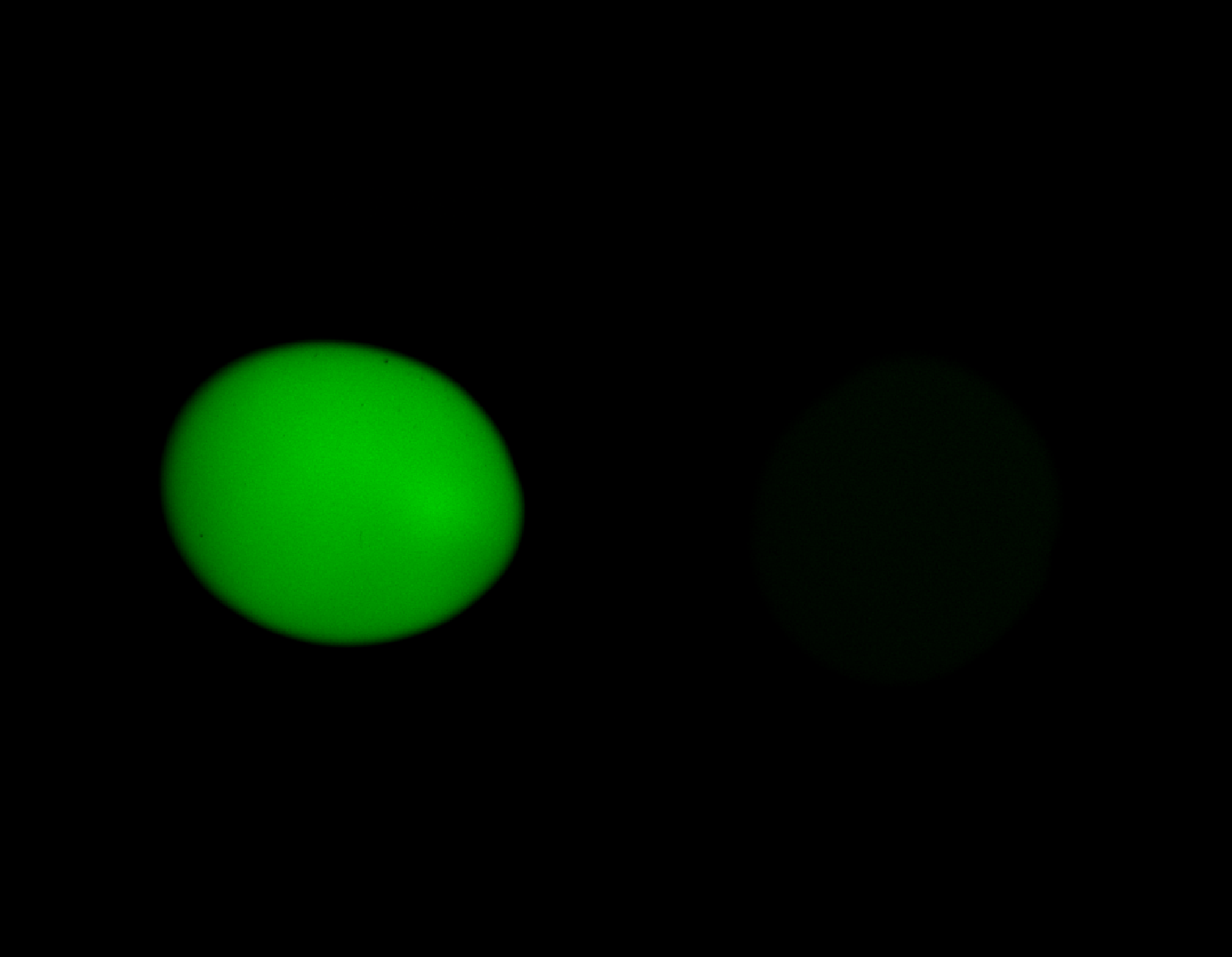

Channel 0 of the unmixed synthetic two-channel stack in Napari.

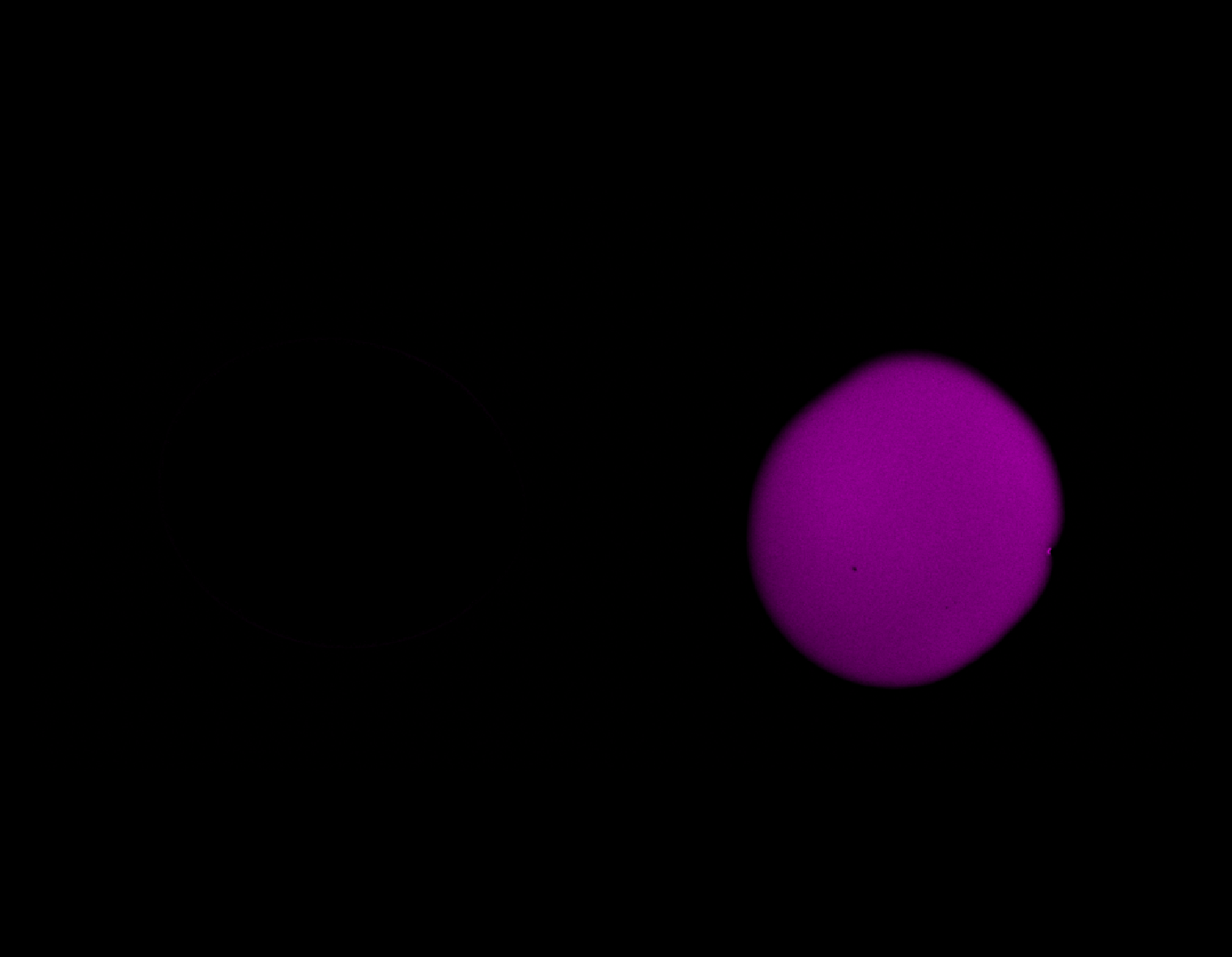

Channel 1 of the unmixed synthetic two-channel stack in Napari.

Results of the fixed bidirectional unmixing. The forward and reverse coefficients were set manually to 0.6 and 0.5, respectively. The bleed-through in both channels is effectively removed. The subsequent examples show how to estimate these coefficients automatically from the data, always resulting in a similar final output (and therefore omitted here for brevity).

Bidirectional mean_ratio

OUTPUT_REFERENCE = OUTPUT_DIR / "bidirectional_unmixed_reference_t0_mean_ratio.tif"

reference_output = unmix(
    input_path=INPUT_PATH,
    output_path=OUTPUT_REFERENCE,
    bidirectional=True,
    # source_channel=0,  # default: 0
    # target_channel=1,  # default: 1
    # alpha_mode="reference_t",
    # alpha_reference_t=0,
    method="mean_ratio",
    signal_percentile=50.0,
    background_percentile=1.0,
    # target_low_percentile=95.0,
    # preprocess_alpha_inputs=True,  # default: True
    # max_alpha_voxels=500_000,  # default
    # random_state=0,  # default
    # alpha_reverse=None,
    # method_reverse="mean_ratio",
    # signal_percentile_reverse=99.0,
    # background_percentile_reverse=0.5,
    # target_low_percentile_reverse=95.0,
)
print(reference_output)
print(report_path_from_output_path(reference_output).read_text(encoding="utf-8"))
show_unmixed_channels_in_napari(
    reference_output,
    source_channel=0,
    target_channel=1,
    layer_prefix="Bidirectional reference mean_ratio")

The most important settings are:

  • signal_percentile: controls how selective the forward-direction source mask is. Higher values keep only brighter source voxels; lower values include more voxels.

  • background_percentile: controls the percentile-based background subtraction used before estimation. Higher values remove more baseline; lower values preserve more low signal.

  • optional target_low_percentile

  • the commented *_reverse parameters if the reverse direction should use a different mask or method

This is usually the easiest automatic bidirectional mode to start with because all reverse-direction settings inherit the forward values unless you override them explicitly.

Note

The bidirectional workflow generally accepts a different estimation method. If you want to use a different method in the reverse direction, you can set method_reverse to one of the supported methods. If it is left at None or omitted, the reverse direction will inherit the forward method. The same inheritance applies to other parameters as well.

The example script shown here uses a stack with only one time point, so alpha_mode and alpha_reference_t are left commented out in the code. For real multi-time-point stacks, you would usually set alpha_mode="reference_t" explicitly when one shared coefficient per direction should be estimated from a chosen reference time point, or alpha_mode="per_t" when one forward and one reverse coefficient should be estimated separately for each time point. In these cases, additional relevant parameters are:

  • alpha_mode: reference_t or per_t for multi-time-point stacks. The former estimates one alpha from the reference time point; the latter estimates one alpha per time point. In the present T=1 example, these arguments are commented out because the default reference_t behavior with t=0 is already sufficient.

  • alpha_reference_t: defines the reference time point from which both directional coefficients are estimated. Only relevant when alpha_mode="reference_t".

Bidirectional linear_fit

OUTPUT_REFERENCE_LINEAR_FIT = OUTPUT_DIR / "bidirectional_unmixed_reference_t0_linear_fit.tif"

reference_linear_fit_output = unmix(
    input_path=INPUT_PATH,
    output_path=OUTPUT_REFERENCE_LINEAR_FIT,
    bidirectional=True,
    # source_channel=0,  # default: 0
    # target_channel=1,  # default: 1
    method="linear_fit",
    #alpha_mode="reference_t",
    #alpha_reference_t=0,
    signal_percentile=50.0,
    background_percentile=1.0,
    # target_low_percentile=95.0,
    # preprocess_alpha_inputs=True,  # default: True
    # max_alpha_voxels=500_000,  # default
    # random_state=0,  # default
    # alpha_reverse=None,
    # method_reverse="linear_fit",
    # signal_percentile_reverse=98.0,
    # background_percentile_reverse=1.0,
    # target_low_percentile_reverse=None,
)
print(reference_linear_fit_output)
print(report_path_from_output_path(reference_linear_fit_output).read_text(encoding="utf-8"))
show_unmixed_channels_in_napari(
    reference_linear_fit_output,
    source_channel=0,
    target_channel=1,
    layer_prefix="Bidirectional reference linear_fit")

This variant estimates forward and reverse coefficients with masked least squares.

The most relevant settings are:

  • signal_percentile

  • background_percentile

  • optional target_low_percentile

  • optional method_reverse

  • optional reverse-direction mask parameters such as signal_percentile_reverse

This is a good choice when you want a fit-based estimate in both directions but still want to retain the same reference-time-point logic.

Bidirectional corr_min

OUTPUT_REFERENCE_CORR_MIN = OUTPUT_DIR / "bidirectional_unmixed_reference_t0_corr_min.tif"

reference_corr_min_output = unmix(
    input_path=INPUT_PATH,
    output_path=OUTPUT_REFERENCE_CORR_MIN,
    bidirectional=True,
    # source_channel=0,  # default: 0
    # target_channel=1,  # default: 1
    method="corr_min",
    # alpha_mode="reference_t",
    # alpha_reference_t=0,
    signal_percentile=50.0,
    background_percentile=1.0,
    alpha_max=1.0,
    # target_low_percentile=95.0,
    # preprocess_alpha_inputs=True,  # default: True
    # max_alpha_voxels=500_000,  # default
    # random_state=0,  # default
    # alpha_reverse=None,
    # method_reverse="corr_min",
    # signal_percentile_reverse=99.0,
    # background_percentile_reverse=1.0,
    # target_low_percentile_reverse=None,
    # alpha_max_reverse=0.5,
)
print(reference_corr_min_output)
print(report_path_from_output_path(reference_corr_min_output).read_text(encoding="utf-8"))
show_unmixed_channels_in_napari(
    reference_corr_min_output,
    source_channel=0,
    target_channel=1,
    layer_prefix="Bidirectional reference corr_min",)

Here the forward and reverse coefficients are chosen by minimizing residual correlation after correction.

The settings most worth tuning are:

  • alpha_max: upper bound for the forward optimization. Larger values allow stronger subtraction; smaller values keep the fit more conservative.

  • optional alpha_max_reverse

  • signal_percentile

  • background_percentile

  • optional method_reverse

This can be more aggressive than ratio- or fit-based estimation, especially when the two channels are themselves biologically correlated.

Bidirectional mi_min

OUTPUT_REFERENCE_MI_MIN = OUTPUT_DIR / "bidirectional_unmixed_reference_t0_mi_min.tif"

reference_mi_min_output = unmix(
    input_path=INPUT_PATH,
    output_path=OUTPUT_REFERENCE_MI_MIN,
    bidirectional=True,
    # source_channel=0,  # default: 0
    # target_channel=1,  # default: 1
    method="mi_min",
    # alpha_mode="reference_t",
    # alpha_reference_t=0,
    signal_percentile=50.0,
    background_percentile=1.0,
    alpha_max=1.0,
    mi_bins=64,
    # target_low_percentile=95.0,
    # preprocess_alpha_inputs=True,  # default: True
    # max_alpha_voxels=500_000,  # default
    # random_state=0,  # default
    # alpha_reverse=None,
    # method_reverse="mi_min",
    # signal_percentile_reverse=99.0,
    # background_percentile_reverse=1.0,
    # target_low_percentile_reverse=None,
    # alpha_max_reverse=1.0,
    # mi_bins_reverse=32,
)
print(reference_mi_min_output)
print(report_path_from_output_path(reference_mi_min_output).read_text(encoding="utf-8"))
show_unmixed_channels_in_napari(
    reference_mi_min_output,
    source_channel=0,
    target_channel=1,
    layer_prefix="Bidirectional reference mi_min")

This method uses the two-channel PICASSO-like mutual-information criterion in both directions.

The key settings are:

  • mi_bins: histogram resolution for the mutual-information objective. Higher values can capture finer structure but can become less stable; lower values are coarser and often more robust.

  • optional mi_bins_reverse

  • alpha_max

  • optional alpha_max_reverse

  • mask and preprocessing settings for each direction

This is the most flexible of the scalar bidirectional estimators, but also the slowest and potentially the most aggressive if the channels are biologically linked.

What to tune most often

For real bidirectional datasets, the most important additional controls beyond the standard one-way workflow are:

  • alpha_reverse

  • method_reverse

  • signal_percentile_reverse

  • background_percentile_reverse

  • target_low_percentile_reverse

  • alpha_max_reverse

  • mi_bins_reverse

Any reverse parameter left at None falls back to the corresponding forward setting. That inheritance model is convenient for a first pass, but for real data it is often worth checking whether the reverse direction deserves its own masking or optimization settings.
